The Am’D lightweight asymmetrical carabiner is made of aluminum. It has a D shape particularly suited for connection to equipment such as descenders or positioning lanyards. Its fluid interior design and Keylock system facilitate handling. It is available in three locking systems (SCREW-LOCK manual system or TWIST-LOCK and TRIACT-LOCK automatic systems).
Specifications:
- Aluminum carabiner is lightweight to reduce equipment weight carried by the user
- D shape is particularly suited for connection to equipment such as descenders or positioning lanyards
- Easier handling:

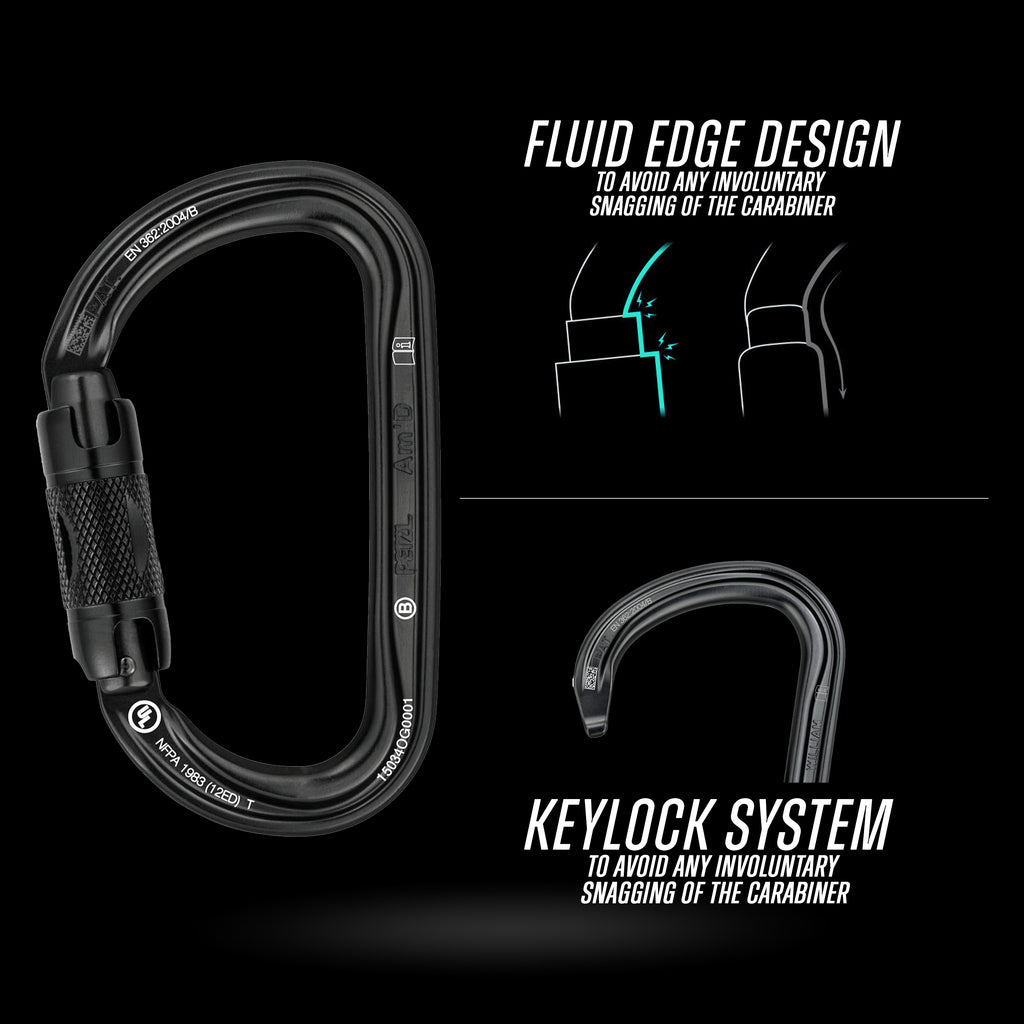

- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner
- H cross-section:
- ensures an optimal strength/weight ratio
- protects markings from abrasion

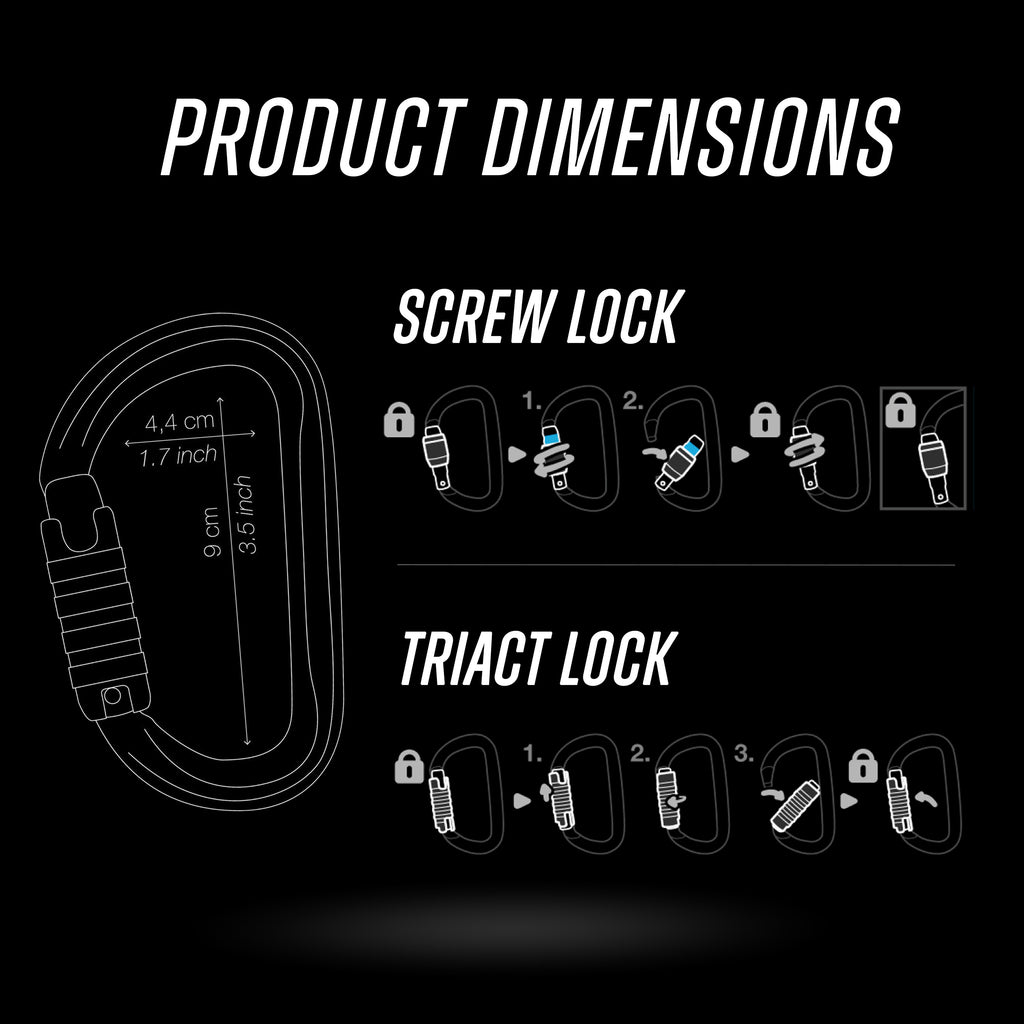

- Available in three different locking systems:

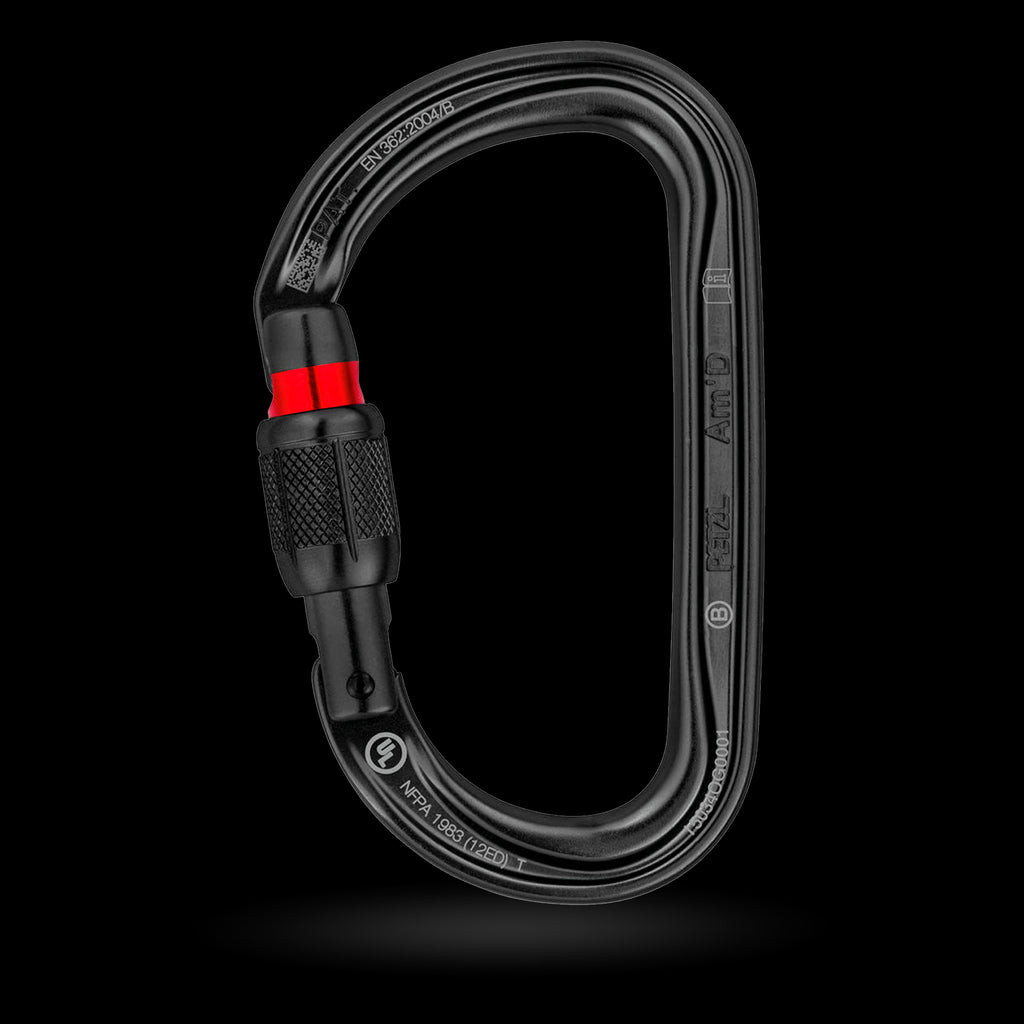

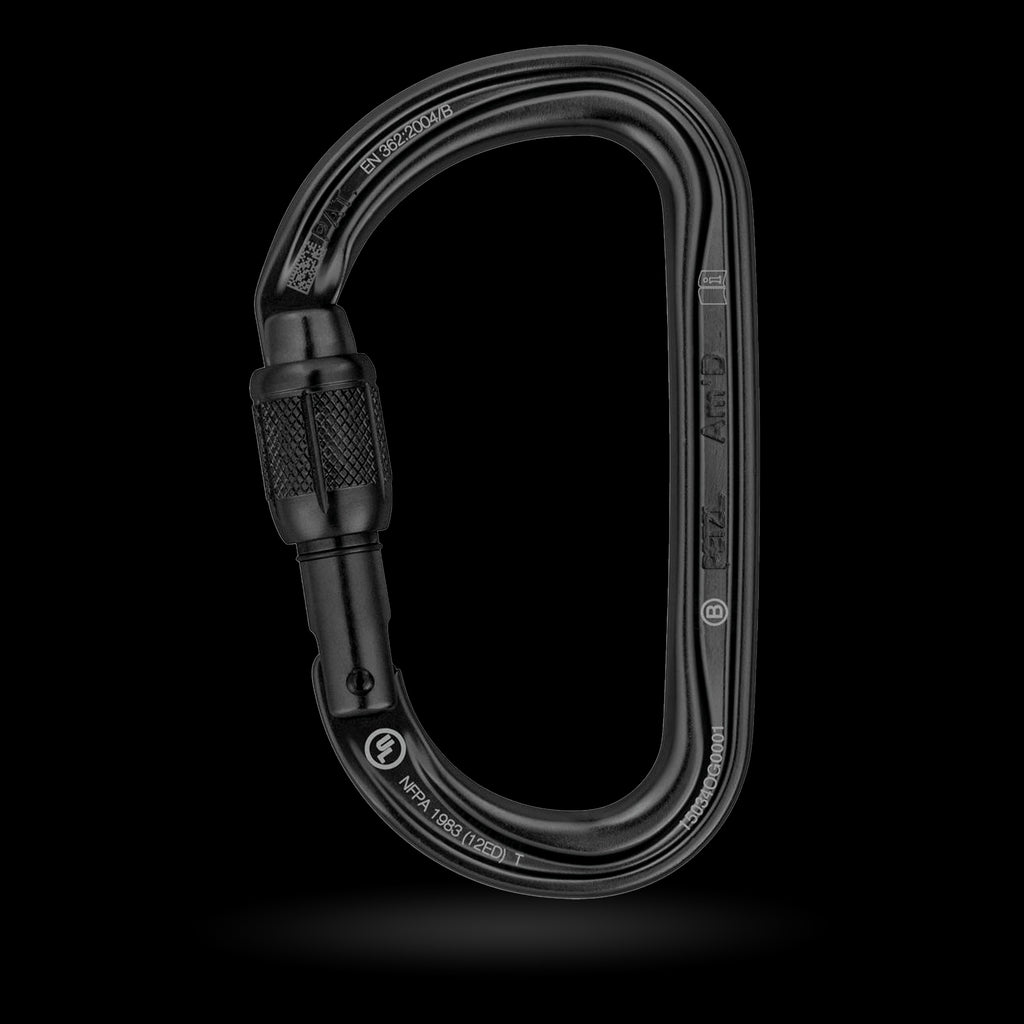

- SCREW-LOCK: manual screw-lock with red band provides a visual warning when the carabiner is unlocked

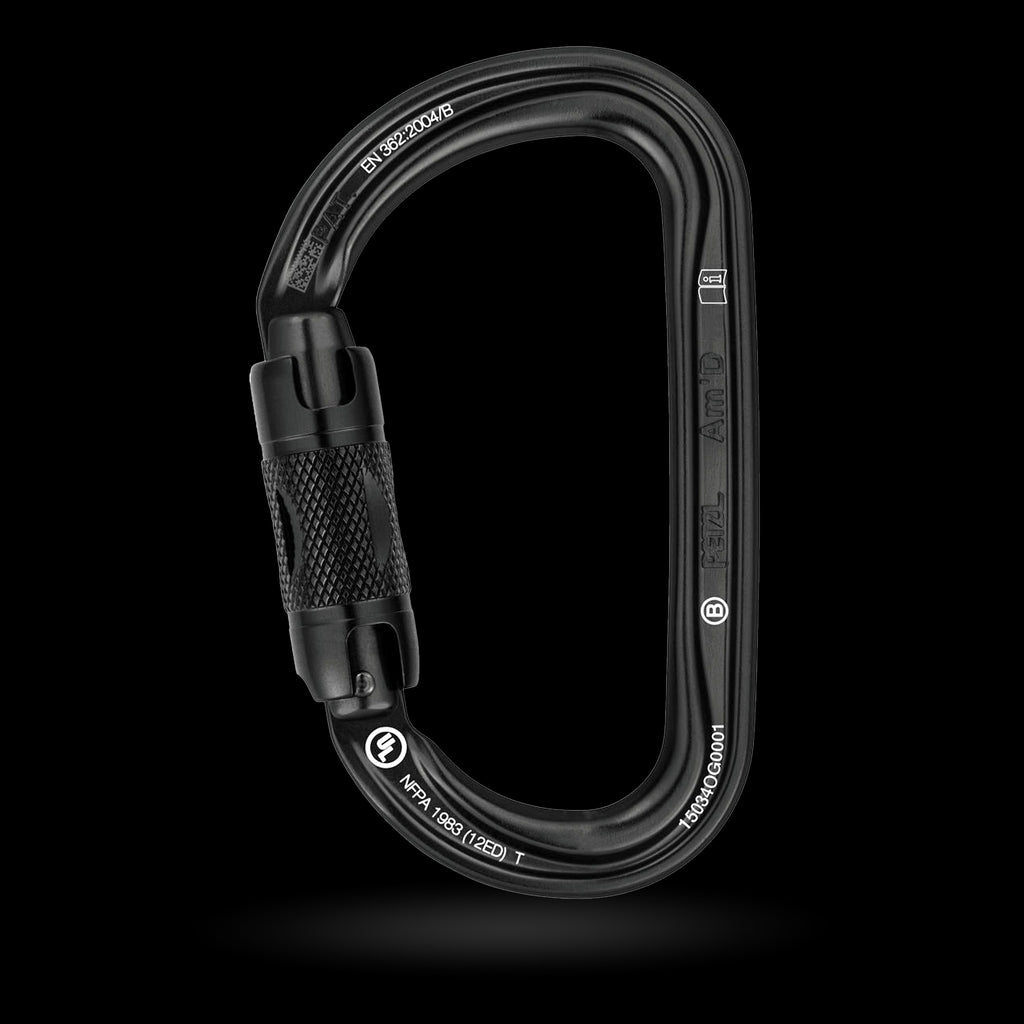

- TWIST-LOCK: automatic locking with double-action gate opening
- TRIACT-LOCK: automatic locking with triple-action gate opening
- May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping
Certification(s):
CE EN 362, 12275 type B, EAC, NFPA 2500 Technical Use, XF 949 : FZL-G-Q, GB/T 23469 / B
References:
| References |
M34A SLN |
M34A TLN |
M34A RLN |
| Weight |
70 g |
75 g |
75 g |
| Locking system |
SCREW-LOCK |
TRIACT-LOCK |
TWIST-LOCK |
| Color(s) |
black |
black |
black |
| Major axis strength |
27 kN |
27 kN |
27 kN |
| Minor axis strength |
8 kN |
8 kN |
8 kN |
| Open gate strength |
7 kN |
7 kN |
7 kN |
| Gate opening |
25 mm |
24 mm |
25 mm |
| Guarantee |
3 years |
3 years |
3 years |
| Inner Pack Count |
1 |
1 |
1 |
What's included:

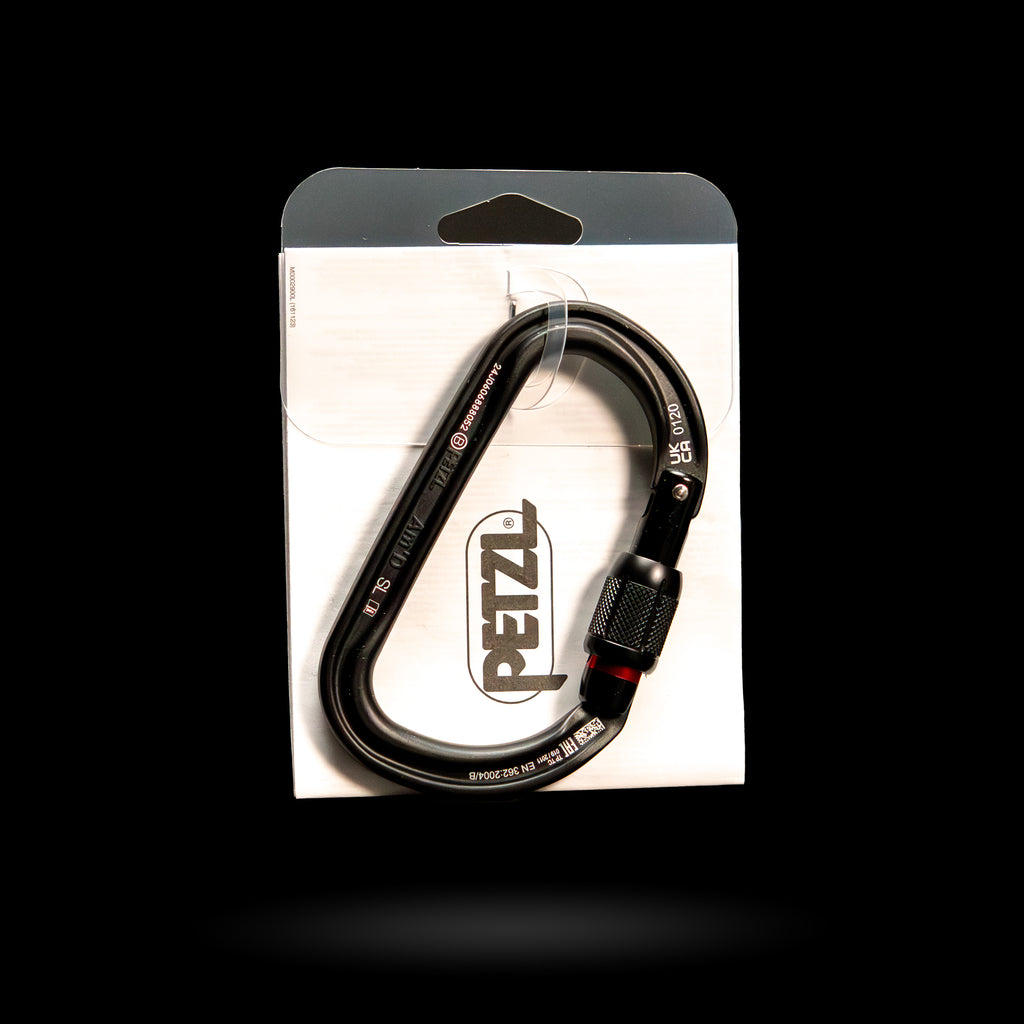

- One Petzl - AM'D Carabiner
